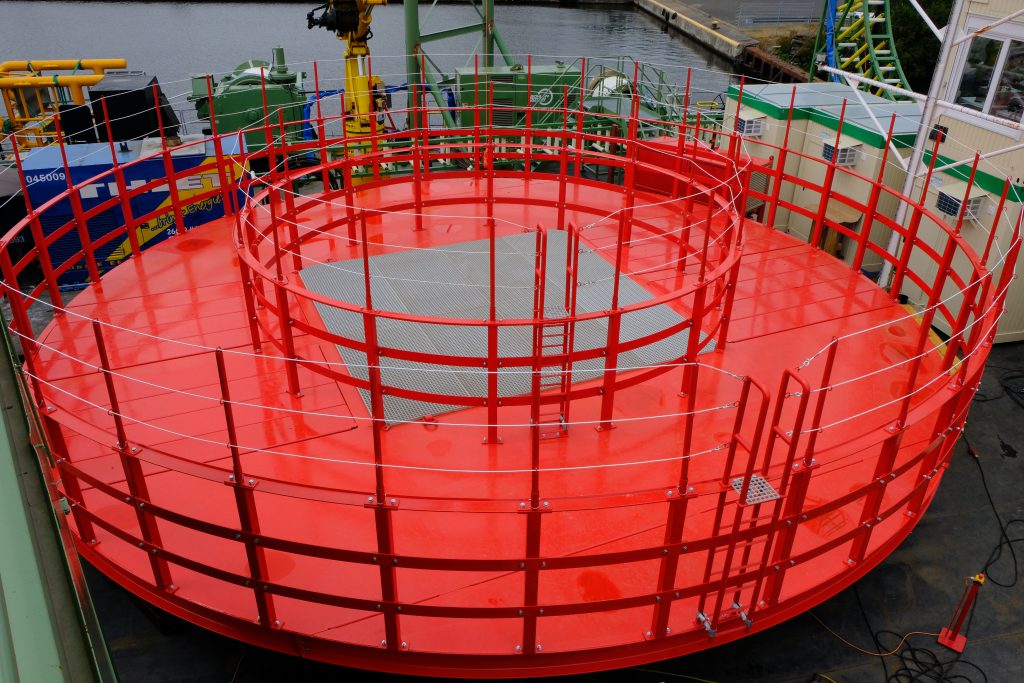

MODULAIR CABLE SYSTEM (MCS)

  • Compact Basket Carousel Design to suit Oil & Gas and Offshore Wind Umbilical/Cable Lay Markets.
  • Mobilised with two lifts – 1st lift of base grillage and drive frames, 2nd lift of basket.

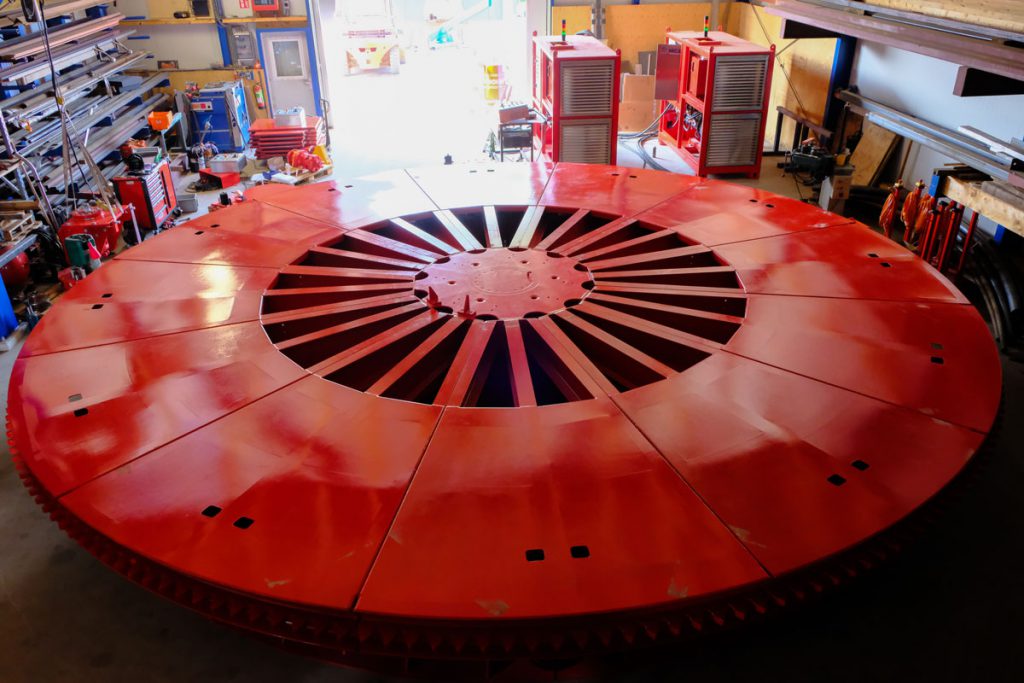

  • Low Profile Circular Grillage optimises vessel deck space enhancing its suitability for smaller offshore wind installation vessels.

TECHNICAL DETAILS

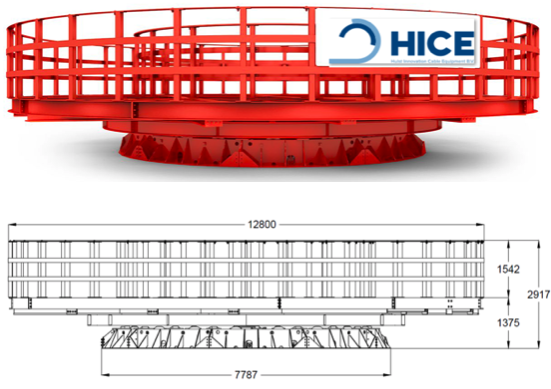

Dimensions8540mm OD x 920 mm
Assembled WeightBasketsapprox. 30Te (without basket)MCS designed baskets following project cable specifications, can be placed on the MCS (max. 400T cable load)

CAPABILITY

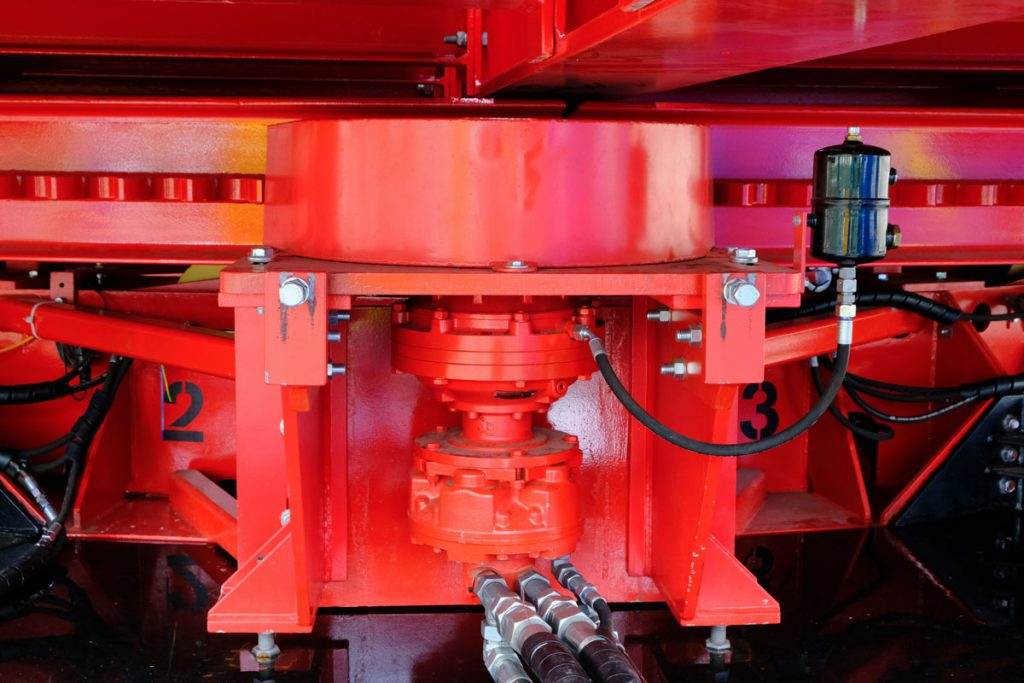

Drive2 x 20 kW Hydraulic Motors Equipped with Failsafe Brakes
Speed1000m/hr maximum lay rate

POWER

HPU75 kW – 2.8m L x 1.1 m B x 2m H – 8Te
Required Supply400V, 50Hz, 3 Phase

CONNECTION PACKAGE
1 x Hydraulic Hose & Power Cable Set Supplied

DESIGN VERIFICACTION
DNV-GL
