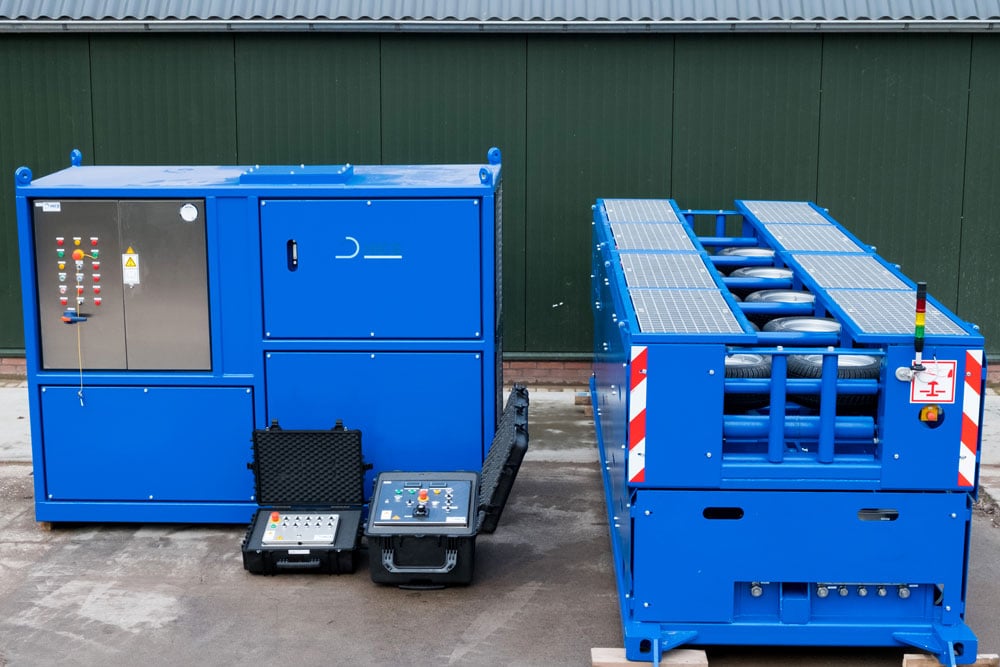

The lay-out of a LCE can be arranged in several ways, HICE has chosen for a split between the tensioner-part and the hydraulic power unit (HPU). This allows the HPU to be placed separately at some distance, which has the advantage of reduced noise and reduced space requirement on the work-deck. The tensioner-part is top loading to ease loading/unloading of cables and allows for simplified handling of end-connections and possible joints.
Dimensions LCE | Length 4.6m |
Width 1.6m | |
Height 1.3m | |
Weight in air | 3.5t |
Dimensions HPU | Length 2.8m |
Width 1.1m | |
Height 2.2m | |
Weight in air | 2.4t |
Power Supply | 440 V, 60 Hz, 75 kW |

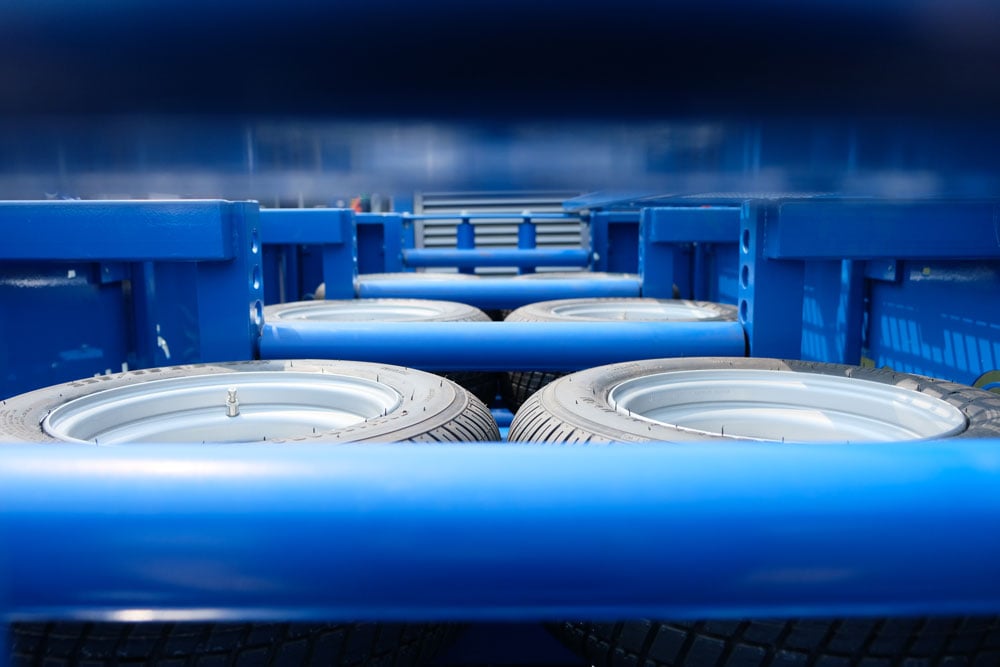

Wheel pairs | 5x wheel pair with wheel 620 mm/each |
Wheel drive | 10x hydraulic motors with individual gear boxes and hydraulic brakes |
Working Pressure | 280 bar |
Line Tension Force | 50kN (can be increased to 70kN) |
Cable opening | Min 0 mm/ Max. 450 mm |
Speed control | 0 – 50 m/minn (0 – 3,000 m/h) |
Hydraulic drive with continuous variable speedand regulation in both directions | |

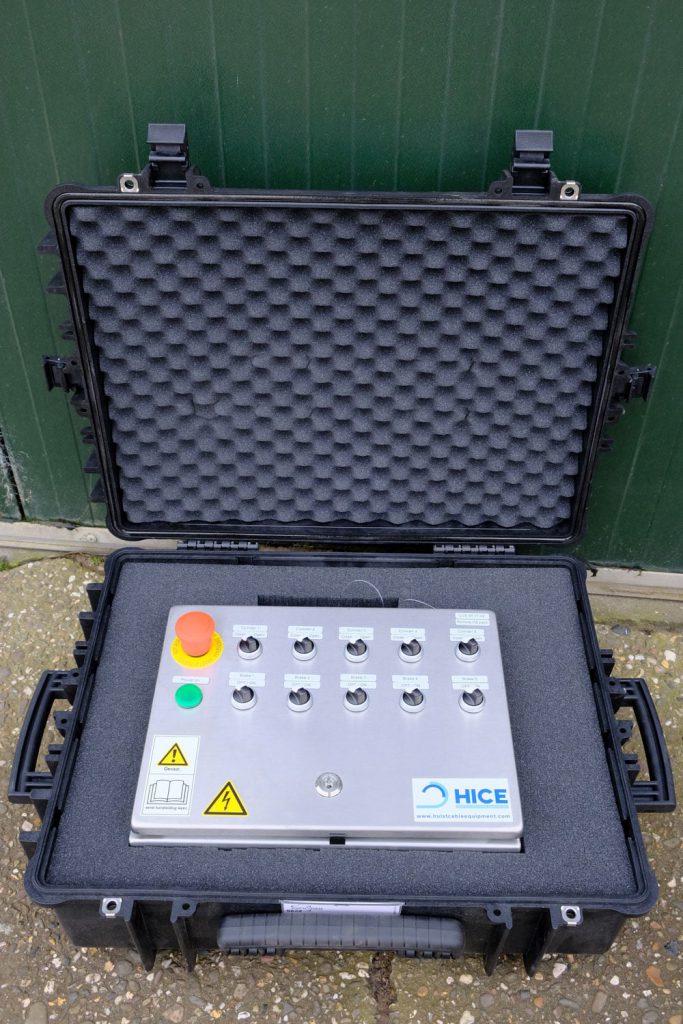

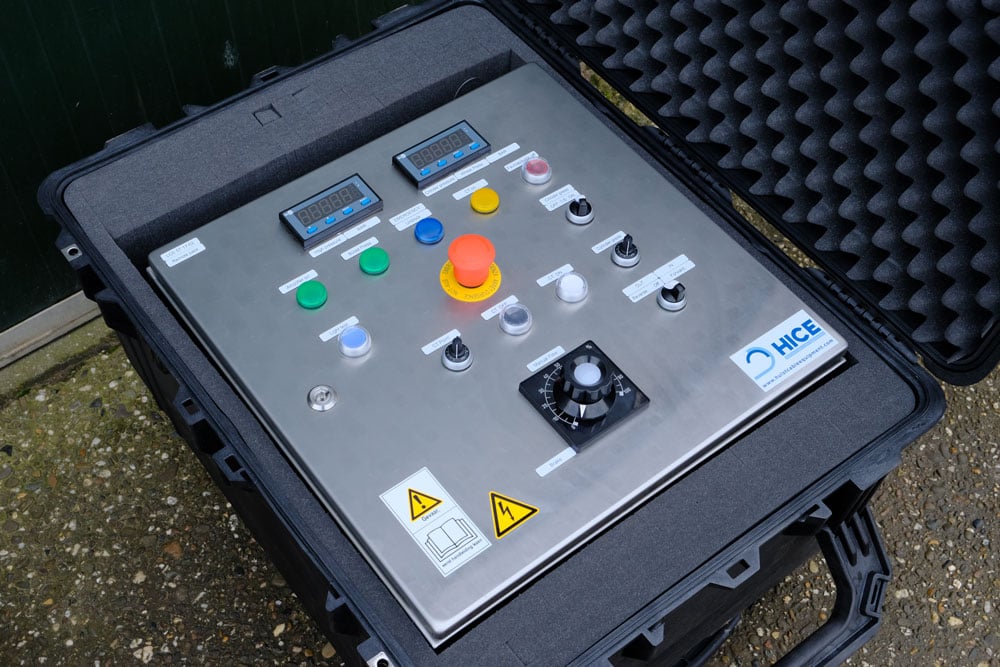

Operating modes | Manual via Joystick Constant speed Constant tension Wheel pairs can be opened, closed, started and stopped either simultaneously or seperately Operations via remote control console c/w local and remote emergency stop |
Tension measurement | Permanently installed frame-mounted load-cell PAT Krüger with 0 – 10,000 kg capacity |
Length measurement | Temporarily installed frame-mounted wheel Hohner Encoder, HWI103S-2021R073-3600 |
