| Overal dimensions | Length 1700 mm (approx. value) exclusive quadrants |
| Width 1410 mm (approx. value) exclusive quadrants |
| Height 2150 mm (approx. value) exclusive quadrants |

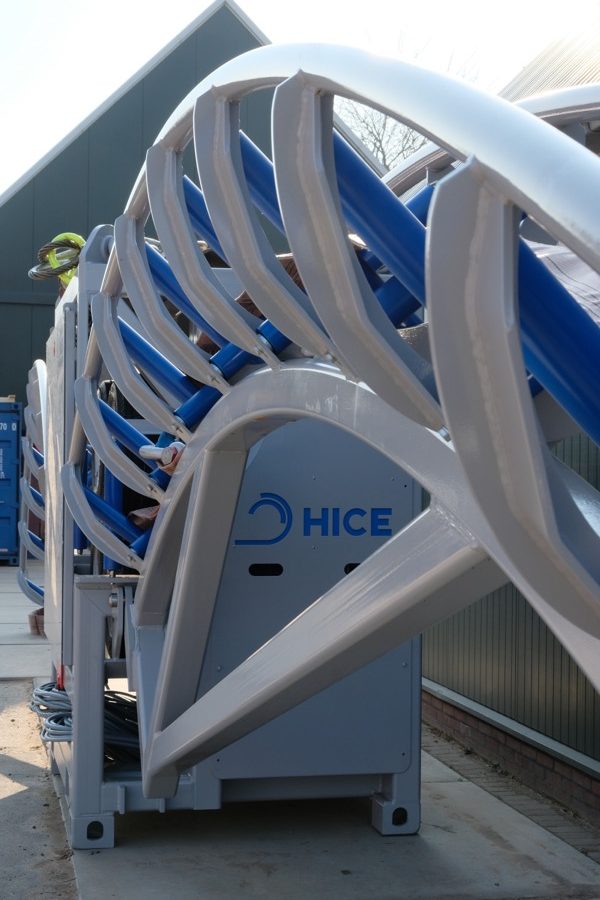

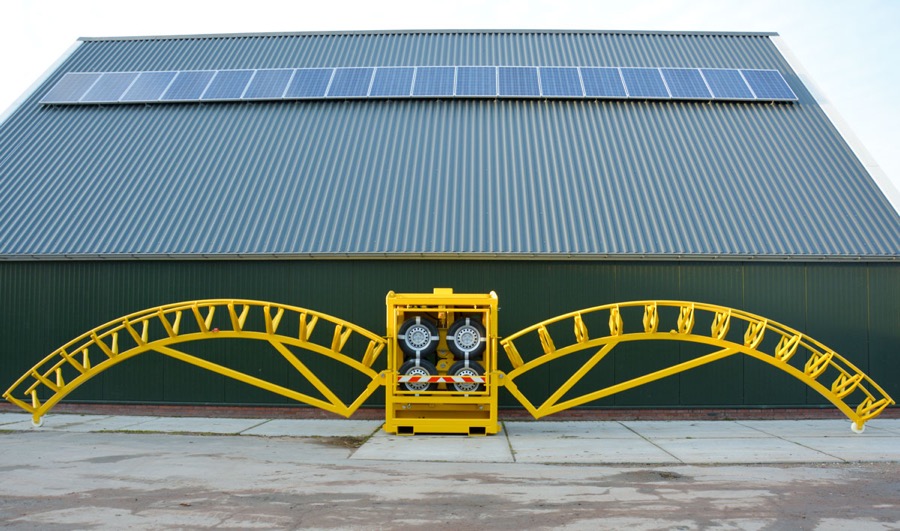

| 90° side quadrants | suitable for up to 5m bending radius |
| Weight in air | 5.5 t (approx. value) incl. quadrants |
| Working load limit | 15t (approx. value) solely related to cable weight |
| Power Supply | 380 V, 50 Hz, 32 A or 440V, 60 Hz, 32 A |
| Wheel pairs | 4x wheels with wheel 650 mm/each |
| Wheel drive | 4x hydraulic motors with cooled electric driven HPU |
| Working Pressure | 200 bar |
| Max. Pulling Force | 20 kN |
| Cable opening | Min 25 mm/ Max. 300 mm |
| Speed control | 0 – 50 m/min (0 – 3,000 m/h) |
| Hydraulic drive with continuous variable speed and regulation in both directions |
| Load control | Load cell with 0 – 10,000 kg capacity |
